RX-7 wings etc., various series

Both Aoshima and Fujimi frequently sell sets of parts for upgrading their car kits. Some of these sets contain parts specifically made to fit RX-7 models, I've listed those on this page.

Fujimi Ae & Be Wing Set, cat nr.11080

released in March 2001

box top (6.8kB)

This set contains a pair of raised rear wings, one of these (Ae type) is for the RX-7 FC3S. The same wing can also be found in the Super Inch Up, Just Tuning, Low Profile and Special Edition kits.



Fujimi Garage & Tools Nr.8, GT-W Wing Set & Muffler Tune Set, cat nr.11112

released in August 2004

box top (34.3kB)

This set contains a pair of raised rear wings, one of these (Type S) is for the RX-7 FD3S. The same wing can also be found in the RX-7 FD3S Mazdaspeed A-Spec GT-W Wing kit.



Aoshima S-Parts Nr.119, GT Wing parts set pt.2, cat nr.034132

released in August 2004

box top (10.3kB)

This set contains three high mounted rear wings, one of these comes from the FD3S C-West kit.

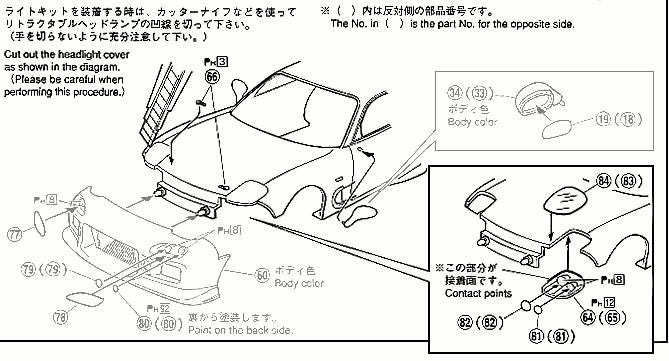

Apart from the wings, a couple of extra parts are still on the frames including the base of the recessed C-West headlights, this may come in handy for converting a Bomex, Vertex or A'pex FD3S kit, since those kits contain the clear headlight parts but not the base.
A decal sheet with carbon weave print is included in this set.



Aoshima The Tuned Parts Nr.93, Wing parts Vol.1, cat nr.058237

released in November 2019

box top (14.8kB)

This set replaces the earlier GT Wing parts pt.2 set.
The set contains parts for three high mounted rear wings, one of these (on the frame marked '01-41-1') comes from the FD3S C-West kit.
Apart from the wings, a couple of extra parts are still on the frames including the base of the recessed C-West headlights, this may come in handy for converting any Aoshima FD3S kit that includes the extra clear parts frame marked '01-42-1', such as the Vertex or even the '98 or Spirit-R FD3S kits, since those kits contain the clear headlight parts but not the base.
A decal sheet with carbon weave print is included in this set.



Scale Auto Style

Scale Auto Style was a british one-man company creating high quality items for customizing 1/24 scale car models.

Scale Auto Style, RX-7 FD3S R-Style Wing - Street, cat nr.WS6

released in January 2006

box top (7.0kB)

This set consists of a wing aerofoil cast in polyurethane resin, a set of etched steel parts for the mounts and a length of brass rod. Each steel wing mount consists of two separate parts to allow for setting the angle of the wing.
This Street wing comes with tall mounting posts.



Scale Auto Style, RX-7 FD3S R-Style Wing - Race, cat nr.WS7

released in January 2006

box top (6.2kB)

This set contains the same resin aerofoil as set WS6, but a new, lower, set of wing mounts.
